Marque
Numéro de pièce du fabricant
PR1US540
Garantie
?
24 mois
EAN
4779051840632

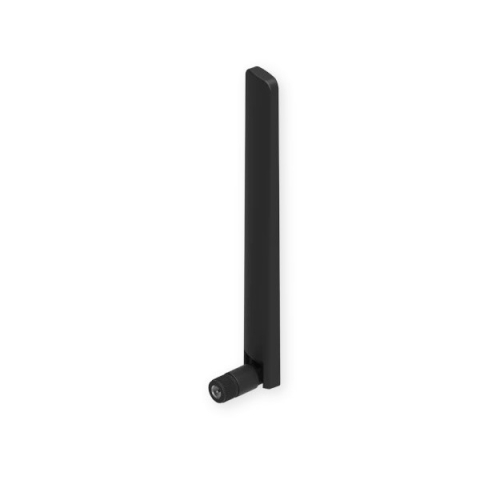

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
en stock
?
4.26 €
4.26 €
Certified Teltonika Engineers
Official Teltonika Distributor
Description détaillée
Caractéristiques techniques
Produits compatibles
Caractéristiques
Réseau Mobile
Génération de réseau mobile
5G (NR)
Antenne
Conception d'Antenne
Omni
Gamme de Fréquences et Gain de l'Antenne Mobile
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Gain D'Antenne Mobile
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarisation
Linéaire
VSWR
< 3
Impédance
50 Ω
Connecteur
Connecteurs RF
(1) SMA Male
Paramètres Physiques
Couleur
Noir
Code de protection d'entrée
IP33
Poids
0.024 kg
Température de fonctionnement
-40 °C à 85 °C
Environnement
Intérieur
Méthode de montage
Vis
Le colis comprend
Unités
1 pièces
