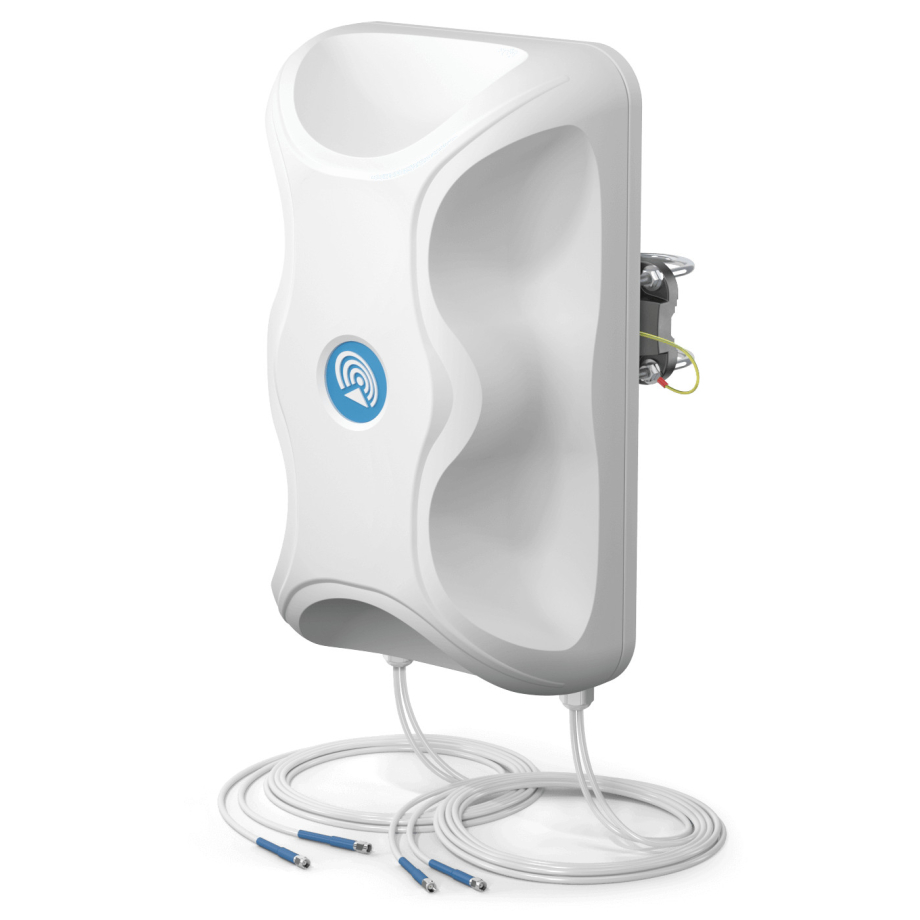

QuPanel 5G/LTE Global MIMO 4x4, 5m
en stock
?
203.22 €
203.22 €
Description détaillée
QuPanel 5G/LTE Global MIMO 4x4 est une antenne extérieure 5G ultra large bande directionnelle. Elle est principalement conçue pour les appareils LTE/ 5G /3G/ 2G qui nécessitent des connexions à haute efficacité. L'antenne couvre de nombreuses bandes LTE, y compris la nouvelle bande LTE étendue 71 et les fréquences : 600 - 6000 MHz. Le support de montage permet d'installer l'antenne sur le poteau ou sur le mur en tant qu'antenne client. C'est la solution idéale à utiliser avec tous les modems et routeurs 5G 4x4 industriels et domestiques comme : Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.
Bandes GSM LTE/4G supportées (617-960 MHz): 5, 6, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, n81, n82, n83, n89.
Bandes LTE/4G UMTS supportées (1710-2170 MHz): 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 59, 62, n80, n84, n86, n95.
Bandes LTE/4G WCS DARS supportées (2300-2400 MHz): 30, 40.
Bandes LTE/4G supportées (2400-2700 MHz): 7, 38, 41, 53, 69, n90.
Bandes LTE/5G supportées (3300-3800 MHz): 22, 42, 43, 48, 49, 52, n78.
Caractéristiques techniques
Caractéristiques
Réseau Mobile
Génération de réseau mobile
4G (LTE), 5G (NR)
Antenne
Conception d'Antenne
Panneau
Gamme de Fréquences et Gain de l'Antenne Mobile
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Gain D'Antenne Mobile
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Largeur du faisceau
80 °
Longueur de Câble
5 m
VSWR
< 3
Impédance
50 Ω
Connecteur
Connecteurs RF
(4) SMA Male
Paramètres Physiques
Matériel
Aluminium, Plastique ABS, Fibre de verre, Polytétrafluoroéthylène
Code de protection d'entrée
IP67

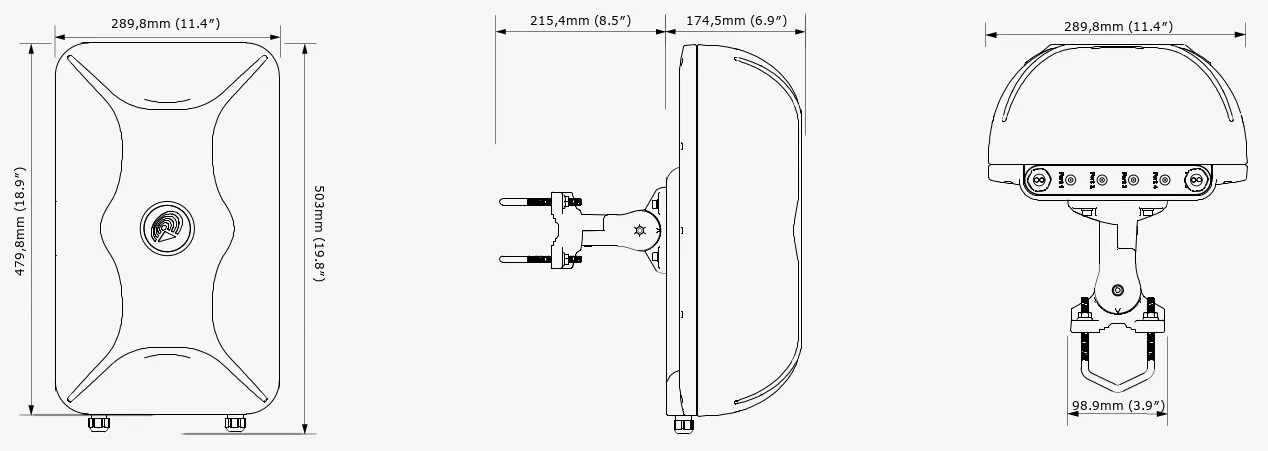

Dimensions
486 x 292 x 106 mm
Poids
2.8 kg
Température de fonctionnement
-40 °C à 80 °C
Environnement
Extérieur
Méthode de montage
Montage Mural, Montage sur Poteau
